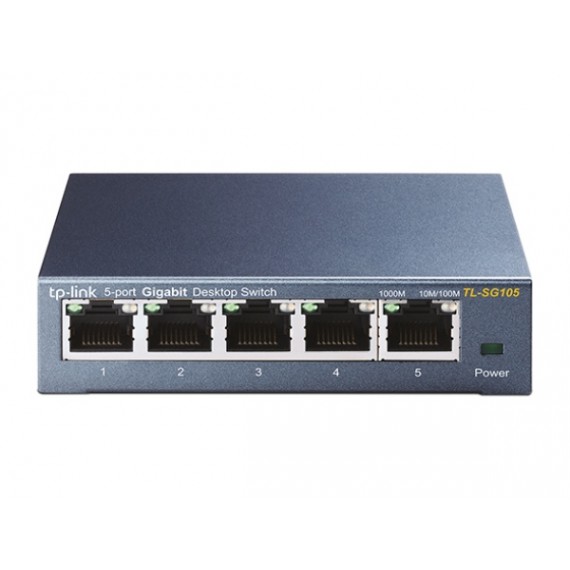

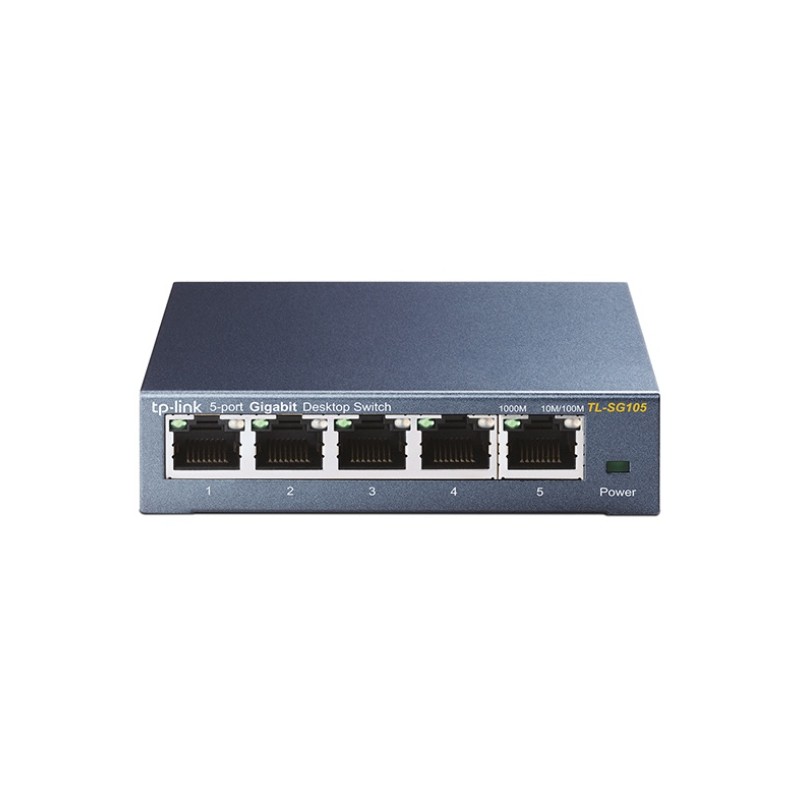

Switch Tp-link Tl-sg105 5p Lan 10/100/1000mbps

SWITCH 5 PORTE 10/100/1000 Mbps

•  5 PORTE RJ45 10/100/1000 Mbps AUTO-MDI / MDIX;
• RISPARMIO ENERGETICO CON TECNOLOGIA GREEN ETHERNET;
• IEEE 802.3x FLOW CONTROL;
• INSTALLAZIONE DESKTOP O A PARETE;
• QoS 802.1p / DSCP;
• INSTALLAZIONE RAPIDA PLUG&PLAY;

CARATTERISTICHE HARDWARE

• STANDARD E PROTOCOLLI: IEEE 802.3i / 802.3u / 802.3 ab/ 802.3x, IEEE 802.1p;
• INTERFACCIA: 5 10/100/1000 Mbps, AUTO-NEGOTIATION, AUTO-MDI / MDIX PORTS;
• NUMERO VENTOLE: FANLESS;
• CONSUMO ENERGETICO: MAXIMUM: 3.2W ( 220V/50Hz);
• ALIMENTATORE ESTERNO: EXTERNAL POWER ADAPTEE ( OUTPUT: 9VDC / 0.6A);
• INDICATORE LED: SYSTEM POWER LINK, SPEED AND ACTIVITY INDICATORS PER PORT BUILT INTO EACH RJ-45 PORT;
• DIMENSIONE (LxPxA): 3.9 x 3.9 x 1.0 in. ( 99.8 x 98 x 25 mm);
• MAX POWER CONSUMPTION: 2.3 W ( 220V / 50Hz);
• MAX HEAT DISSIPATION: 7.83 BTU/h;

PRESTAZIONI

• PACKET FORWARDING RATE: 7.4 Mpps;
• TABELLA ARP: 2K;
• BUFFER ( PACCHETTI): 1Mb;
• JUMBO FRAME: 15 Mb;

CARATTERISTICHE SOFTWARE

• CARATTERISTICHE AVANZATE: GREEN TECNOLOGY, SAVING POWER UP TO 84%, 802.3 x FLOW CONTROL, 802.1p/DSCP QoS ( FOR V2 AND LATER VERSION), IGMP SNOOPING;
• METODO DI RIFERIMENTO: STORE AND FORWARD;

ALTRO

• CERTIFICAZIONI: CE, FCC, RoHS;
• CONTENUTO DELLA CONFEZIONE: 5-PORT 10/100/1000 Mbps, DESKTOP SWITCH, POWER ADAPTER, INSTALLATION GUIDE;
• AMBIENTE: OPERATING TEMPERATURE: 0°C ~ 40°C ( 32°F ~ 104°F), STORAGE TEMPERATURE: -40°C ~ 70°C ( -40°F ~ 158°F), OPERATING HUMIDITY: 10% ~ 90%, NON CONDENSING, STORAGE HUMIDITY: 5% ~ 90%, NON CONDENSING.
